Day & Night IR Camera(ICA-6000/6300W)

Model Number

ICA-6000/6300W

ITEM	DESCRIPTION
	ICA - 6000W 270K / 320K PIXEL	ICA - 6300W 410K / 470K PIXEL
1. Image Device	Interline Transfer CCD
2. Total Pixel	NTSC : 542(H) X 492(V) PAL : 542(H) X 582(V)	NTSC : 811(H) X 507(V) PAL : 795(H) X 596(V)
3. Scanning System	2 : 1 interlace
4. Synchronization System	Internal
5. Horizontal Resolution	420 TV Line	520 TV lines
6. Sensitivity	< 0.01 Lux
7. Electronic Iris	Auto (NTSC:1/60 ~ 1/100,000sec PAL:1/50 ~ 1/100,000sec)
8. Signal Processing	DSP
9. Video Output	1.0Vp-p ( - 10 ℃ ~ + 50℃ ), 75ohm
10. S/N Ratio	More than 46dB
11. Power Supply	12 V DC(9V ~ 14V)
12. Power Consumption	Max 600mA
13. Operating Temperature	- 10 ℃ ~ +50 ℃
14. Operating Humidity	Max RH 95%
15. Dimension	52∅ X 70mm(L)
16. Aplide Lens	4.3mm
17. Weight	300g

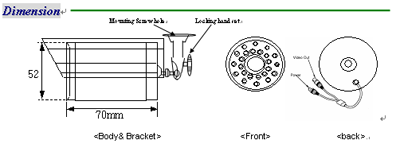

<DIMENSION>
