Model Number |
IPT - 300 |
|
ITEM
|
DESCRIPTION
|
|
IPT - 300
|
|
1. PAN
|
ANGLE
|
0 to 320 〫 〫
|
|
MANUAL SPEED
|
4.5 〫/sec
|
|
2. TILT
|
ANGLE
|
0 TO 50
|
|
MANUAL SPEED
|
4.5" /SEC
|
|
3. CONTROL
|
RS - 485, baud rate : 9600bps
|
|
4. ID select
|
Dip s/w setting
|
|
5. Power Supply
|
12V DC(9V ~ 14V) / 500mA
|
|
6. Operating Temperature
|
-0℃ ~ + 40℃
|
|
7. Weight
|
1.3 KG
|
|
8. Load Rating
|
5KG
|
|
9. Dimension
|
136(W)∅ X 106(H)mm
|

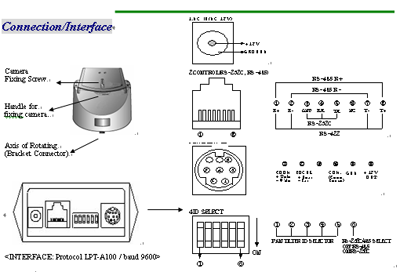

<DIMENSION>

|
