Surveillance BOX Camera(ICA-221/231I)

ITEM

DESCRIPTION

ICA - 221I

270K/320K PIXEL

ICA - 231I

410K/470K PIXEL

1.Image Device

Interline Transfer CCD

2.Total Pixels

NTSC : 542(H) X 492(V)

PAL : 542(H) X 582(V)

NTSC : 811(H) X 507(V)

PAL : 795(H) X 596(V)

3.Scanning System

2 : 1 interlace

4.Synchronization System

Internal

5.Horizontal Resolution

420 TV Lines

520 TV Lines

6.Sensitivity

0.5 LUX

0.3 LUX

7.Electronic Iris

Auto 1/60 ~ 1/100,000 sec

1/50 ~ 1/100,000 sec

8.Video Output

1.0Vp-p (-10% ~ +10%), 75ohm

9.S/N Ratio

More than 46dB

10.Power Supply

12 V DC(9V ~ 14V)

11.Power Consumption

Max 140mA

12.Operating Temperature

- 10 ℃ ~ +50 ℃

13.Operating Humidity

Max 95 RH 95%

14.Lens control

Available Video drive / DC drive

[DC / EE /VD model]

DC--> When using DC type AUTO IRIS

EE--> When using Fixed IRIS Lens Using-(default type EE)

VD--> When using Video Driver AUTO IRIS Lens

15.Mirror image

On / Off

16.BLC

On / Off

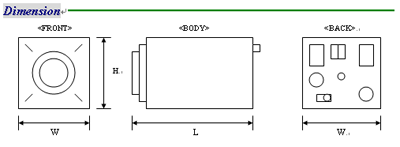

17.Dimension

50mm(H) X 50mm(W) x 88mm(L)

18.Weight

220g
